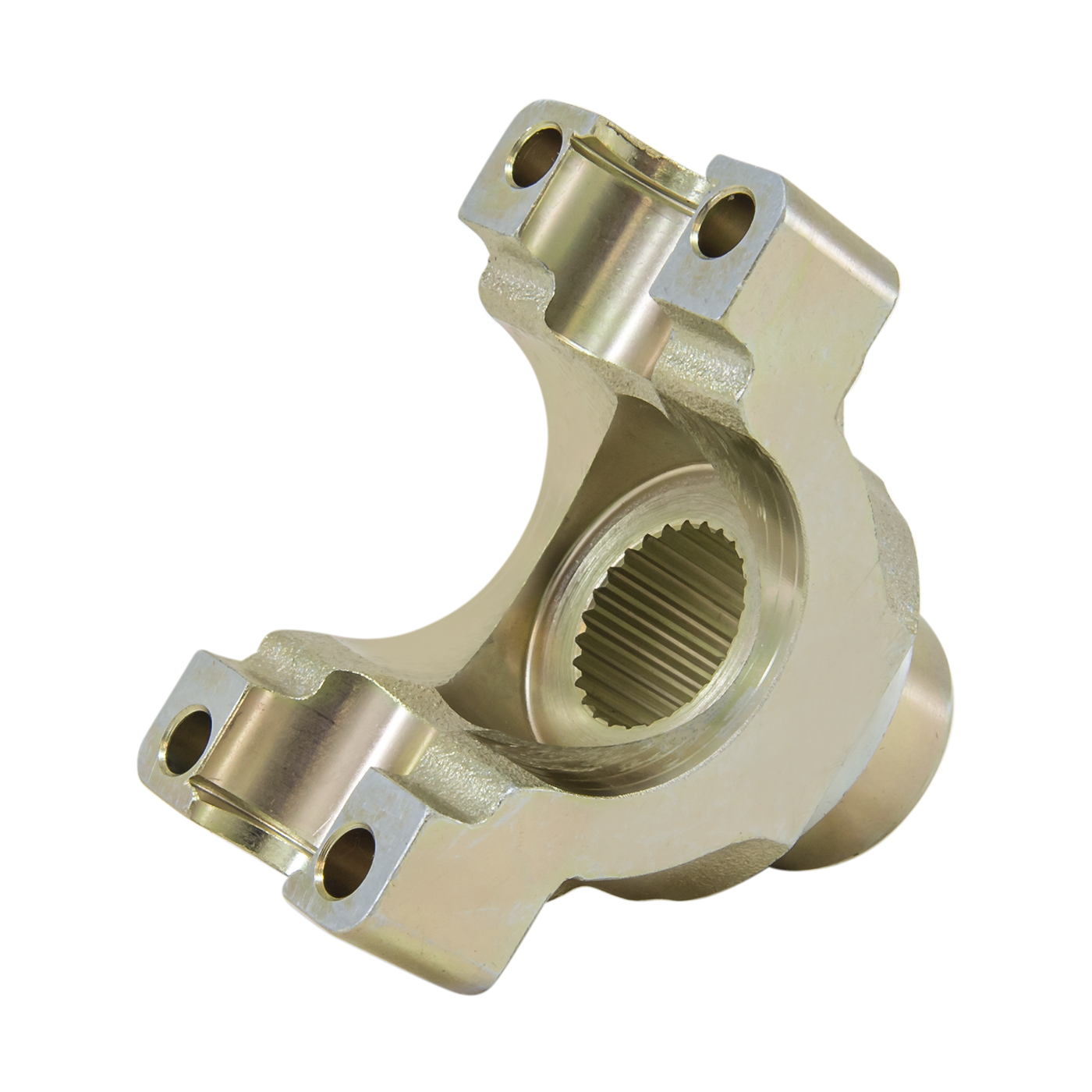

Yukon replacement yoke for Dana 30, 44, and 50 with 26 spline and a 1330 U/Joint size | YY D44-1330-26U | RANDYS Worldwide

Product Details

Yukon Gear and Axle manufactures a complete line of general replacement and performance series of pinion yokes for many street, racing, and heavy-duty off-road applications.

Fits Dana Spicer 44
26 spline
1330 u-joint size
3.625" snap ring span
1.125" cap diameter
Outside snap ring design
U-bolt style

Technical Notes

3.000" tall yoke, 1.552" hub diameter, U-Bolt style yoke - U-Bolt kit "YY UB-003" sold separately. Verify height, 2003-2006 TJ Rubicon uses a 3.750" tall 1330 yoke. YY D44-1330-26L

Warranty Information

Warranty information unavailable

Compatible Make / Model

Compatible Differentials

Specification

Brand	Yukon Gear & Axle
Prop65 Warning	Not Applicable
Keywords	D50,1,1/8,1330,2-4-6111X,2-4-8431-1,26spl,BOLT,CAP,D30,D44,DIFFYOKEDANA44,DIFFYOKEDANA50,FINE,NOT12,HD,PINION,REAR,REV,SHORT,SLEEVE,STD,U,YOKE,YOKE-D44-1330-26U,YY
Spline Quantity	26
Technical Notes	3.000" tall yoke, 1.552" hub diameter, U-Bolt style yoke - U-Bolt kit "YY UB-003" sold separately. Verify height, 2003-2006 TJ Rubicon uses a 3.750" tall 1330 yoke. YY D44-1330-26L
U Joint Size	1330 Ford
Yoke Clip Type A	Outer
Yoke Span A	3.625
Yoke Cap Diameter A	1.125
UPC	883584410201
ProxyNumber	41020
Width	6.00 in
Length	6.00 in
Depth	6.00 in
Weight	2.0600 lb
