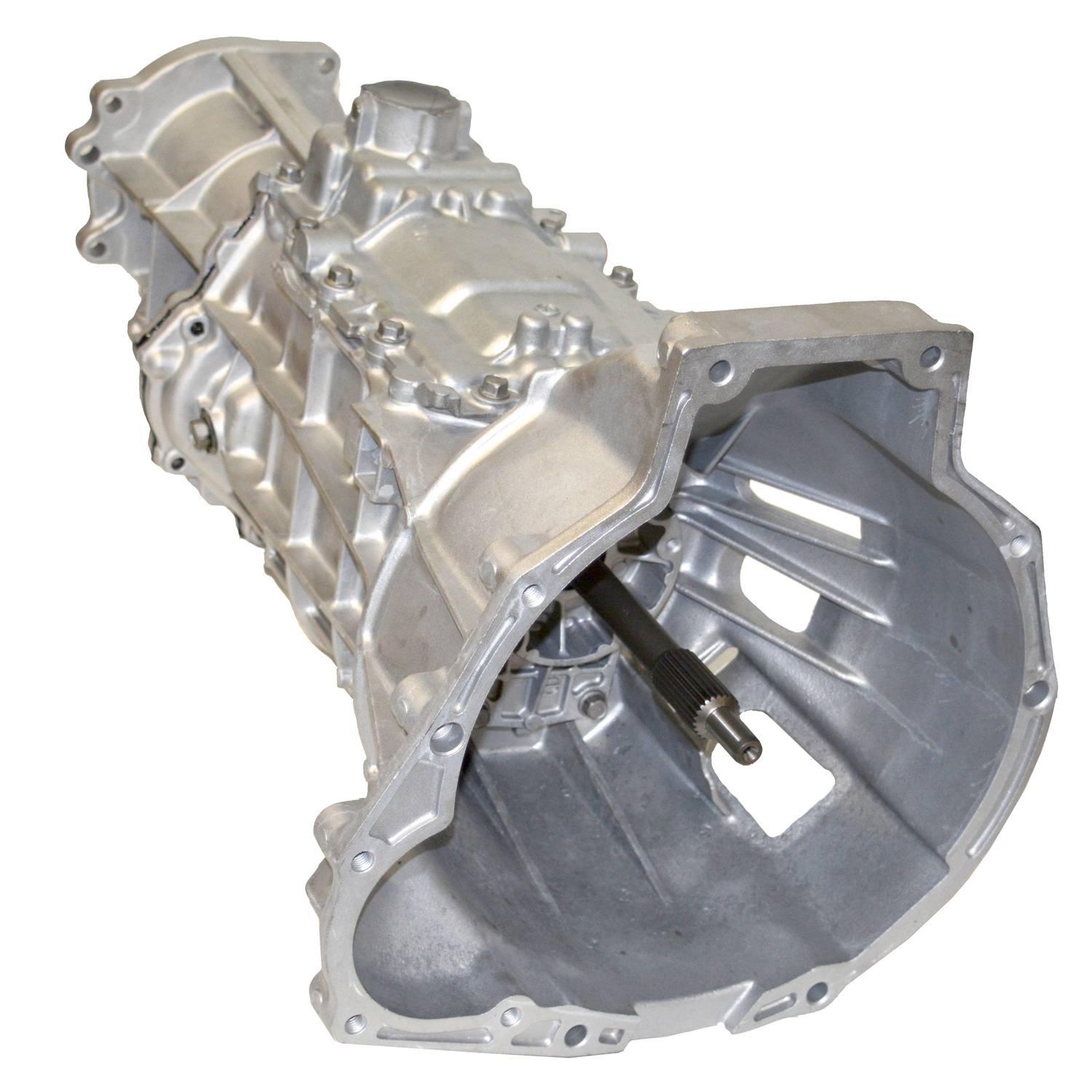

M5R1 Manual Transmission for 88-94 Ranger And 94 B2300, 2.3L, 4x4

Product Details

Zumbrota Drivetrain Manual Transmissions are rebuilt to the highest quality standards using a 3 step inspection process. Step 1 is a pre-inspection for case cracks, excessive wear, and OEM specific problems. Step 2 measures component parts to ensure OEM specifications are met. Step 3 ensures each unit is built to our exacting quality standards. Shaft straightness, gear wear & synchronizers are extensively tested to meet OEM specs. Seals are replaced and units are dyno-tested for operation, shiftability, and noise level. Unrivaled standards are set for unit precision and reliability at all critical touchpoints. Then an exclusive hydro-blast rinse & sandblasting procedure on internal and external parts, followed by proprietary shot-enticed deep cleaning, sets the standard for manual transmission remanufacturing.

Quality inspections are conducted 3 times during the remanufacturing process
A pre-inspection is done to ensure the unit is free of case cracks, excessive wear and to catch other OEM related problems that many cores have
A second inspection is conducted during the reman process to ensure all component parts meet OEM specifications
A final post-build inspection is done to ensure unit is built to our strict standards
100% inspection of internal parts, including gear wear checks, mainshaft straightness test and synchronizer testing.
All transmissions are dynometer tested and ran through numerous real life scenarios.

Technical Notes

M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5/8 Inch long Shifter Stub, One Switch Top Cover, No Speedo Or Vehicle Speed Sensor, With Transfer Case Shifter Mounts On The Tail, Tag Numbers: E87A-FC, E87A-FF, E87A-FG, F17A-LB, F27A-VA, Hollander Number: 400-02269

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ford Ranger (1988-1994)

Specification

Brand	Zumbrota Drivetrain
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Keywords	1,1,2.3L,2269,4,4,400-02269,400-2269,4WD,4WD,5/8,5/8,88,88,94,94,94,B,B2300,E87A-7003FC,E87A-7003FF,E87A-7003FG,F17A-7003LB,F27A-7003VA,FORD,M/T,M/T,M5R1,M5R1,MANUALTRANSMISS,MAZDA,NO,NO,RANG,RANGER,RMT,RMT,SERIES,SHIFTER,SHIFTER,SPEEDO,SPEEDO,STUB,STUB,SW.,SW.,TM5R1F-2SN,TM5R1F-4,TOP,TOP
Technical Notes	M5R1; All Aluminum, Shift Lever Bolts Into The Top Cover, No Bottom Pan, 4-5/8 Inch long Shifter Stub, One Switch Top Cover, No Speedo Or Vehicle Speed Sensor, With Transfer Case Shifter Mounts On The Tail, Tag Numbers: E87A-FC, E87A-FF, E87A-FG, F17A-LB, F27A-VA, Hollander Number: 400-02269
UPC	883584718208
ProxyNumber	71820
Width	28.00 in
Length	32.00 in
Depth	19.00 in
Weight	98.0000 lb

FAQs

First, let’s consider a rebuilt transmission. In most cases, a vehicle experiencing transmission problems is brought to an automotive repair shop. There, the transmission is removed and worked on by a mechanic who completely disassembles the transmission all the way down to its component nuts and bolts.

The mechanic inspects and cleans each and every transmission component and determines which parts are in working order, excessively worn, or just plain damaged beyond repair. Parts deemed worn or damaged are replaced with new or “used” components, and the unit is then reassembled. Once completed, the transmission is reinstalled and the vehicle is ready to hit the road. In this scenario, the transmission has been “rebuilt” – repairs have been made, bad parts have been replaced, but the unit has received few, if any, upgraded components.

A remanufactured transmission is basically the same as a rebuilt transmission, but the work has been performed by a dedicated transmission repair facility or shipped to the original transmission manufacturing facility. By opting for a transmission remanufacture, the customer is assured the transmission is being repaired by absolute experts on that particular transmission and has been remanufactured to incorporate all design and component upgrades that weren’t available when it was originally manufactured. This example also applies to transfer cases and differentials.

For vehicles made after 1995 it’s recommended to look in your owner’s manual for part number and description. If using non-OE oil, make sure the fluid you use states that it is a direct replacement for the OE part number. If the fluid meets or exceeds OE specs but does not cross to the OE number, do not use IT and look for one that does.

High stress driving will repeatedly increase the temperature of your transmission, eventually breaking down the stability of the gear oil in your car. If you regularly tow, drive in low traction conditions, or drive in mountainous regions, you will likely need to change your gear oil every 30,000 miles, or potentially even less.

In normal driving conditions, most cars can travel up to 80,000 miles before needing a gear oil change. However, this number is a maximum, and most manufacturers recommend changing your gear oil between 50,000 and 60,000 miles.

Other conditions that require a gear oil change can develop under unusual circumstances. For example, if your transfer case, differential component, or transmission has experienced submersion in water or another foreign fluid, your gear oil should be replaced. Contaminated oil can seriously damage your gearbox, transfer case, or differentials with inadequate lubrication.

You should also replace your gear oil if your transfer case or differentials recently had a leak repaired. A leak could signal contamination or low levels of gear oil. Most mechanics will replace your gear oil after repairing a leaky component, but this is sometimes forgotten during home repairs.

Lastly, if you or your mechanic finds dirty gear oil during a checkup, it should always be replaced. Old or dirty oil leads to destabilized viscosity and poor lubrication, which will prematurely damage your gearbox, transfer case, and/or differentials.
