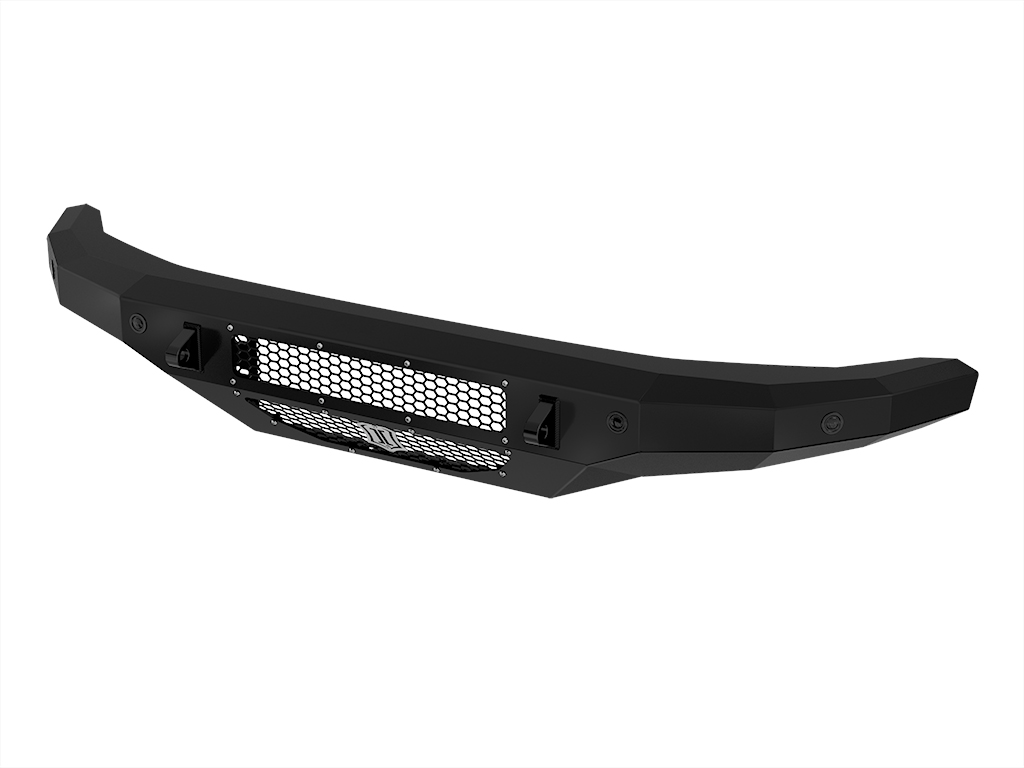

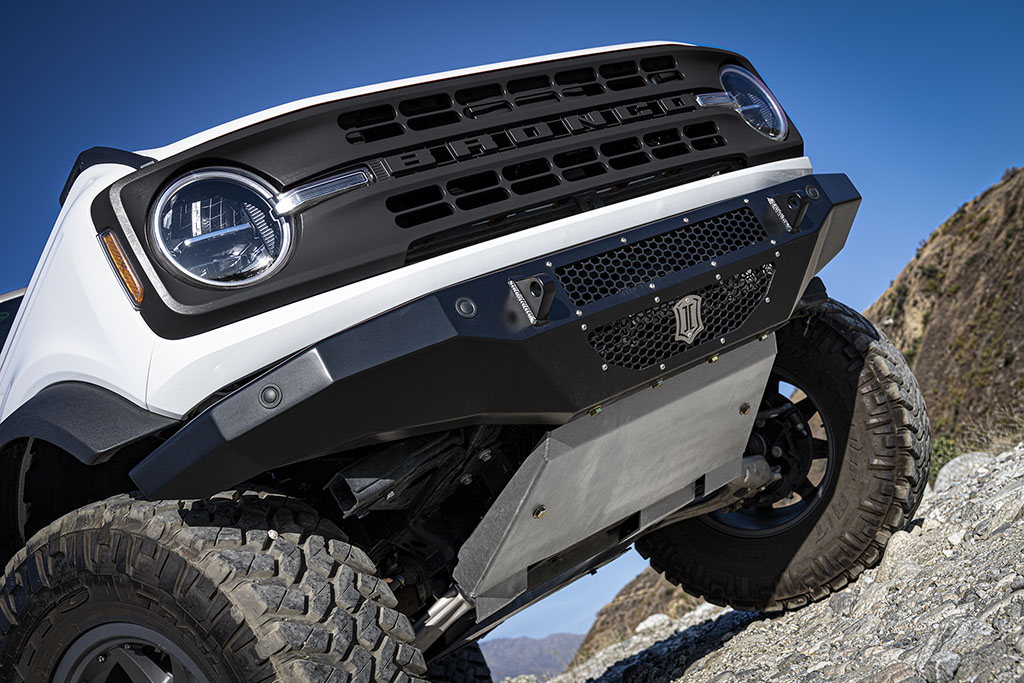

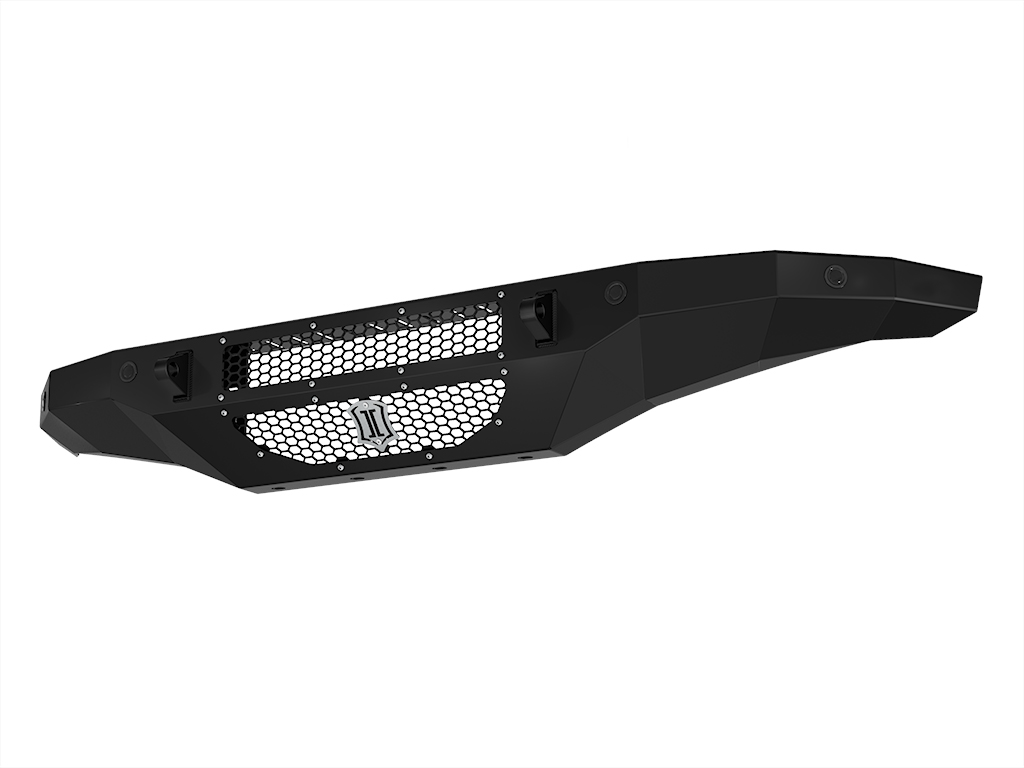

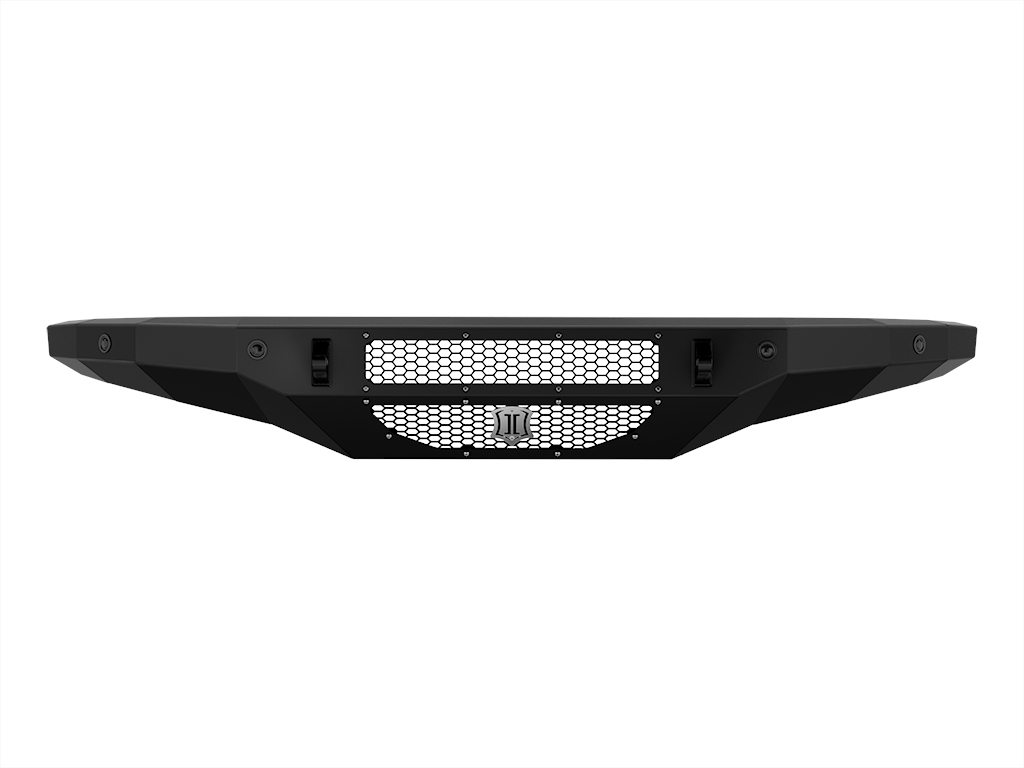

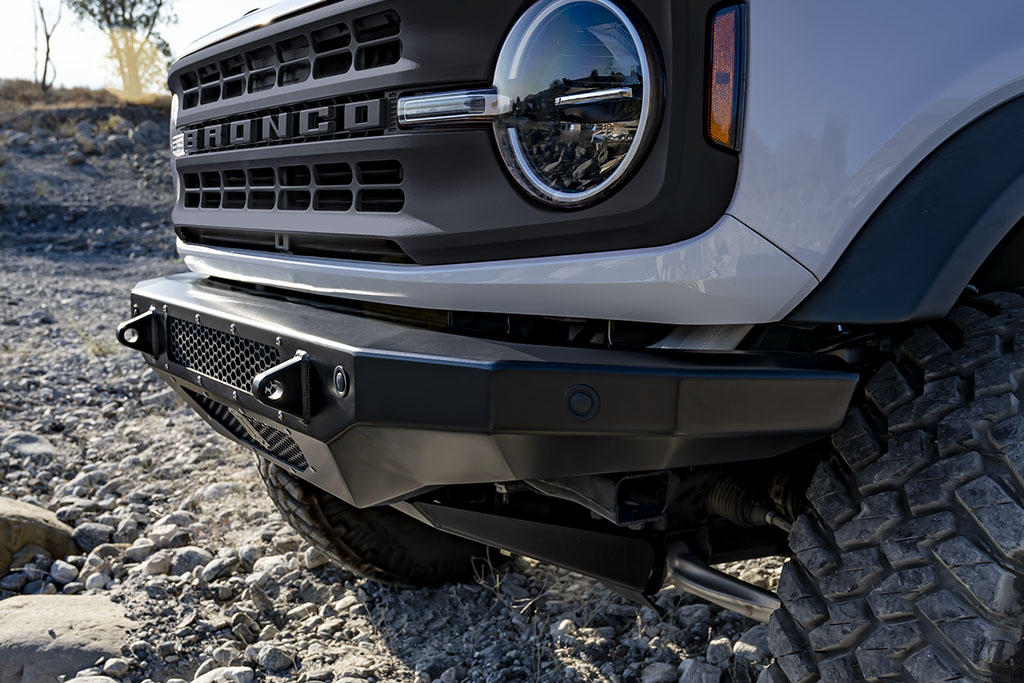

ICON Impact Armor 2021-Up Ford Bronco Trail Series Front Bumper

ICON Impact Armor 2021-2023 Ford Bronco Trail Series Front Bumper

Product Details

Tackle the toughest trails with the Trail Series Front Bumper from ICON! Designed for the ultimate in off-road form and function, Trail Series features a multi-faceted, high-clearance design that sneaks past the tightest rocks. Tapered ends protect the Bronco's lower grille corners while allowing the front tires maximum access to grip and pull the vehicle over steep obstacles. If you do manage to get yourself into a tight spot, recovery is aided by a pair of extreme duty recovery shackle tabs, CNC machined from beefy 1" thick plate steel.The bumper comes with provisions to retain the Bronco's parking sensors (caps are provided for Broncos without sensors). A removable aluminum mesh panel promotes airflow through the Bronco's intercooler. The bumper is fabricated from CNC laser cut, precision brake-formed 3/16 plate steel. The bumper looks as great as it performs, with a durable, semi-gloss black powder coat finish.

Design provides sporty, light weight and maximum clearance on the trail
Durable satin black powder coat finish
ICON Impact Series Limited Lifetime Warranty
Faceted, high-clearance design to maximize approach angle and off-road performance
Parking sensor mounts with bezels or caps for Broncos without sensors
Extreme duty 1" thick recovery shackle tabs are angled for high clearance
3/16" thick plate steel construction, CNC laser cut and brake-formed
Removable Aluminum mesh panels allow maximum airflow to intercooler
Up to five (5) 3" LED cube lights or a 20" LED light bar (not included) may be mounted behind the center mesh panel using the provided mounting tabs
Optional ACC Relocation Kit allows continued functionality of the ACC module
Easy bolt-on installation with no cutting or drilling

Technical Notes

TECH NOTE: Vehicles equipped with Adaptive Cruise Control require relocation of the ACC module using either ICON part # 45209 or 45210 (sold separately).
TECH NOTE: Recovery shackle tabs CNC machined from 1” thick steel plate, for 3/4” shackle pin (5/8” shackle)
TECH NOTE: Optional Skid Plate ICON Part #45207 (sold separately). Not compatible with OE skid plate.
TECH NOTE: Optional Diff Skid Plate ICON Part #45208 (sold separately)
TECH NOTE: Lighting accessories not included. Light mounts are compatible with up to five (5) common 3x3” cube LED lights or one (1) 20” LED light bar. Installing AAC relocation part # 45210 reduces LED cube light mounting locations from 5 to 4 and makes 20" light bar no longer compatible. AAC relocation part # 45209 allows for full lighting options while retaining AAC functionality.
TECH NOTE: Not compatible with OE winch included with Bronco Everglades
TECH NOTE: Not compatible with Bronco Raptor

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ford Bronco (2021-2023)

Specification

Brand	ICON Impact Series Offroad Armor
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Vehicles equipped with Adaptive Cruise Control require relocation of the ACC module using either ICON part # 45209 or 45210 (sold separately). TECH NOTE: Recovery shackle tabs CNC machined from 1” thick steel plate, for 3/4” shackle pin (5/8” shackle) TECH NOTE: Optional Skid Plate ICON Part #45207 (sold separately). Not compatible with OE skid plate. TECH NOTE: Optional Diff Skid Plate ICON Part #45208 (sold separately) TECH NOTE: Lighting accessories not included. Light mounts are compatible with up to five (5) common 3x3” cube LED lights or one (1) 20” LED light bar. Installing AAC relocation part # 45210 reduces LED cube light mounting locations from 5 to 4 and makes 20" light bar no longer compatible. AAC relocation part # 45209 allows for full lighting options while retaining AAC functionality. TECH NOTE: Not compatible with OE winch included with Bronco Everglades TECH NOTE: Not compatible with Bronco Raptor
UPC	00840103414959
Material	Steel
Finish	Powdercoated
Color	Black
Material Thickness	.188
Add-On Part	45208 - 21-UP FORD BRONCO FRONT DIFF SKID PLATE
Width	16.00 in
Length	73.00 in
Depth	12.00 in
Weight	85.0000 lb
