ICON VEHICLE DYNAMICS UNIVERSAL 13" TRAVEL 2.0 NR HDRV

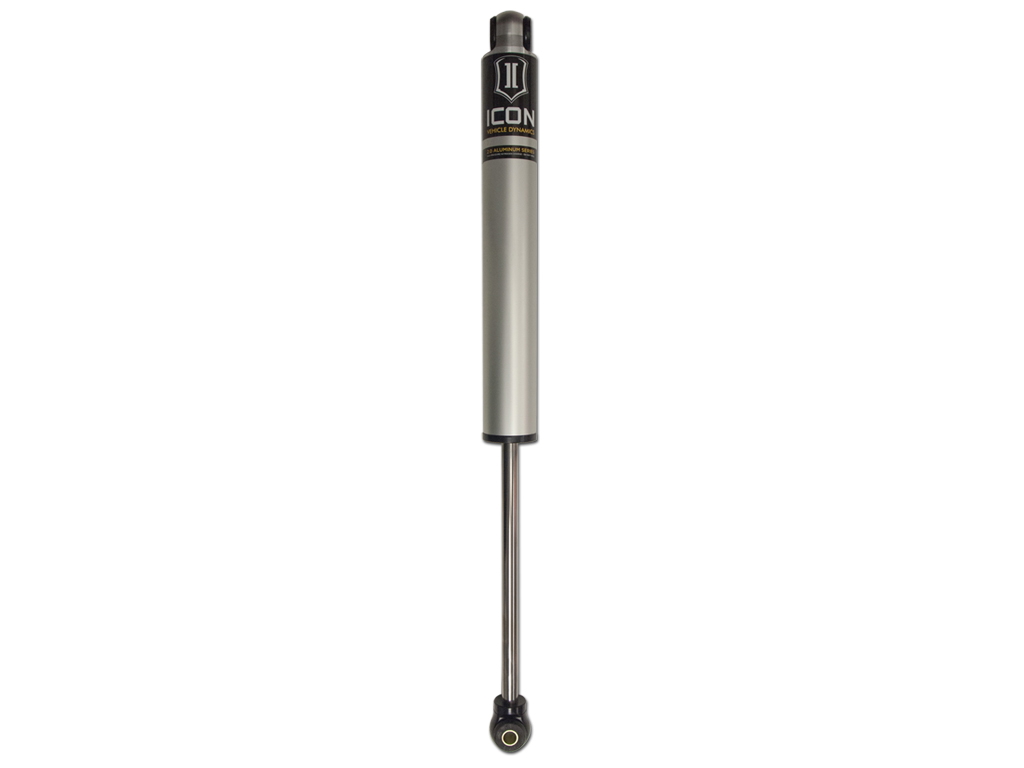

ICON Universal 2.0 Aluminum Series Rear Shock, Heavy Duty Valving, 13” Travel

Product Details

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% revalveable
Nitrogen charged emulsion shock
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable

Technical Notes

TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle.
EXTENDED LENGTH: 31.80"
COMPRESSED LENGTH: 17.98"
SHAFT TRAVEL: 13.82"
MOUNTING DIMENSIONS: Upper/lower eyelets for 1.5" width between tabs and .5" diameter bolt

Warranty Information

Warranty information unavailable

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle. EXTENDED LENGTH: 31.80" COMPRESSED LENGTH: 17.98" SHAFT TRAVEL: 13.82" MOUNTING DIMENSIONS: Upper/lower eyelets for 1.5" width between tabs and .5" diameter bolt
UPC	00840103400358
Bushing Material	Polyurethane
Bushing Color	Black
Material	Aluminum
Finish	Anodized
Body Diameter	2
Remote Reservoir	NO
Adjustable Damping	No
Shaft Diameter	0.625
Shaft Material	Chrome
Cylinder Material	Aluminum
Service Parts	252004 - ECONOMY NEEDLE CHARGING TOOL
Width	3.00 in
Length	40.00 in
Depth	3.00 in
Weight	4.0000 lb
